Track & Trace

Track and Trace

Enable global pharmaceutical compliance with track and trace, smart data management and inspection

T&T for Pharmaceuticals is a MUST to operate business in many countries/regions such as USA, EU, Brazil, GCC, Egypt, South Africa and many more.

track-trace
// Manufacturers, Warehouses, 3PL, Pharmacies, and Hostpital

T&T Portfolio

Pharma T&T Compliance Modules
  • Pharma and CPG Factories
  • Supply chain 3PL /Wholesalers & Distribution centers
  • Dispensers, Pharmacies &  Hospitals
  • External communication and regulatory compliance reporting (EDA, RSD, Trace link, Euro Hub, … )
Enterprise Modules
  • ERP integration & APIs (ORACLE, SAP, JD Edwards)
  • HMS integration
  • POS Integration

Regional / National Data Hub Repositories and Data Lakes, on Premise & on Cloud services

Site Master Modules
  • Serialization Plant Manager & MES integration
  • Serialization Warehouse Manager
  • Area Stores Manager
Mobile Modules for health care Sector
  • HH Android scanners
  • Warehouse Execution Mobile Application
  • 3PL aggregation
  • Dispensing terminals
  • POS terminal
Pharma T&T Systems
  • Serialization Standalone & online Systems
  • Aggregation Standalone & online Systems.
  • End of line Automation Case packer , Bundlers, Pick to tote and Palletizers.

Target Markets

Pharma
Medical Devices
Food
Beverage

Unique Value Proposition

Complete, scalable, flexible and end to end solutions for stakeholders

High powerful database to gather, store and exchange data

Software suite for compliance with worldwide traceability regulations

Track Trace Adjusted

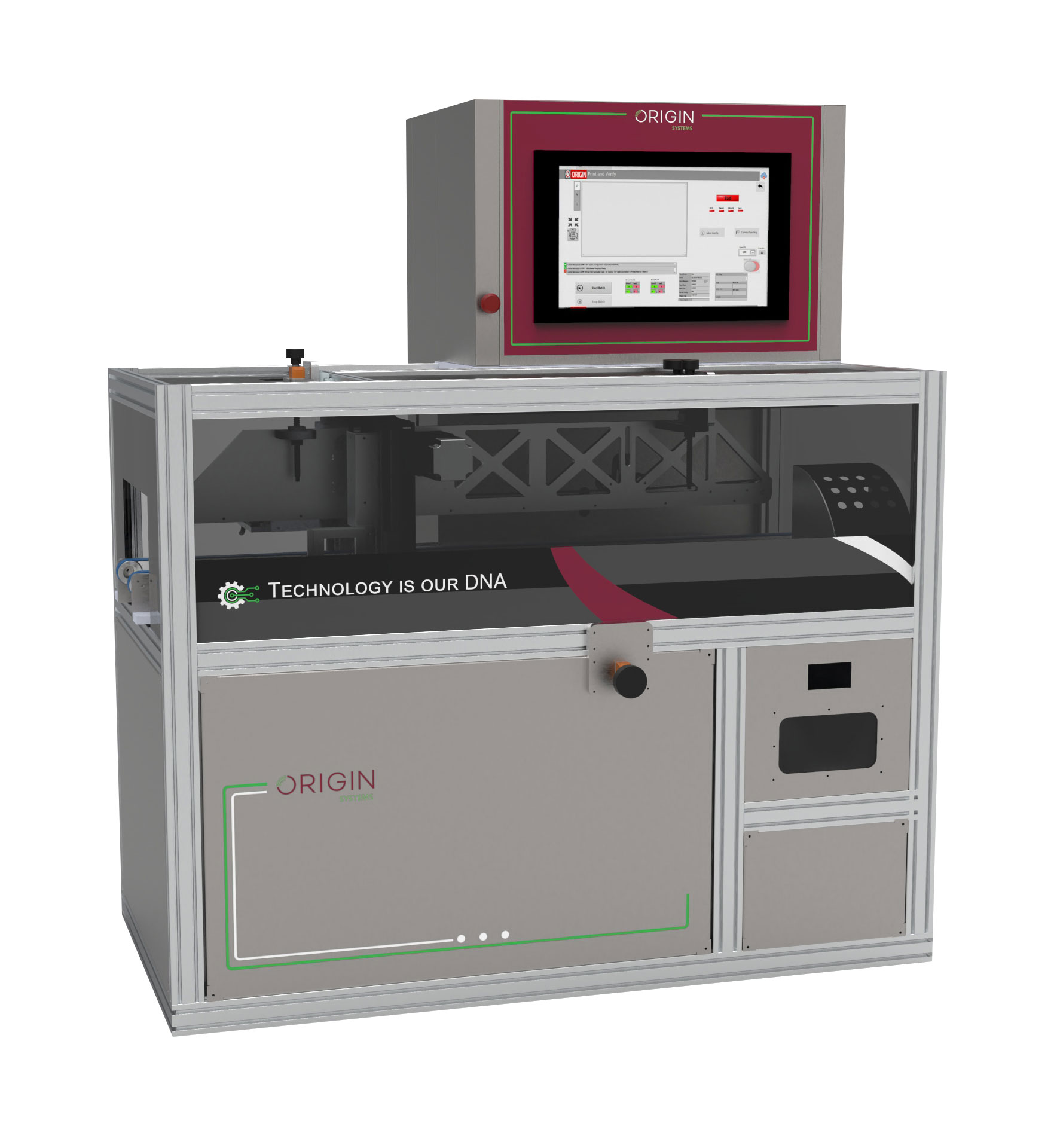

Inline High Speed

In Line Serialization (High Speed)

  • Features
  • Technical
  • Packing
  • High speed up to 600 c/m: Machine speed is compatible with high speed cartoner machines that reaches 500 c/m with maintaining good quality printing and stable continuous production flow
  • User friendly SW: SW is designed to ease the operation, secure and simplify the process
  • Robust mechanical system: Mechanical system is designed and tested to withstand continuous high load operation, with simple and economic maintenance
  • Data integrity: The machine has a local Database storing all serials status and events, Following CFR 21 Part 11 regulations

Machine length: 1500 mm
Machine width: 1087 mm
Machine height: 1690 mm
Machine frame: Stainless steel
Cladding pannels/doors: Transparent / non-transparent: Polycarbonite
Weight: Approx. 400 KG
Control cabinet: Integrated in machine
Working procedure: Servo / Pneumatic
Supply voltage: 220VAC

Output: Max. 600 carton / min

  • Carton length (L) min / max: 60-200 mm
  • Carton width (B) min / max: 40-150 mm
  • Carton height (H) min / max: 20-110 mm
  • Infeed (Customer Requirement): Running direction right
  • Outfeed (Customer Requirement): Outfeed

In Line Serialization (Smart)

  • Features
  • Technical
  • Packing
  • Compact design 724 mm length: In most cases the machine fits in production line area
  • Speed up to 400 c/m: Machine speed is compatible with most of Automatic packaging line speeds with the highest Printing quality
  • User friendly SW: SW is designed to ease the operation, secure and simplify the process
  • Robust mechanical system: Mechanical system is designed and tested to withstand continuous high load operation, with simple and economic maintenance
  • Significantly low reject rate: Due to our highquality imaging system and SW algorithms Reject rate is less than 0.7 %
  • Data integrity: The machine has a local Database storing all serials status and events, Following CFR 21 Part 11 regulations
  • Modular: the machine is designed to be installed inline after Automatic cartoner machine or check weigher, also could be installed stand alone for manual feeding operation in manual packaging lines

Machine length: 724 mm
Machine width: 1160 mm
Machine height: 1700 mm
Machine frame: Stainless steel
Cladding pannels/doors: Transparent / non-transparent: Polycarbonite
Weight: Approx. 250 KG
Control cabinet: Integrated in machine
Working procedure: Servo / Pneumatic
Supply voltage: 220VAC

Output: Max. 400 carton / min

  • Carton length (L) min / max: 60-200 mm
  • Carton width (B) min / max: 40-150 mm
  • Carton height (H) min / max: 20-110 mm
  • Infeed (Customer Requirement): Running direction right
  • Outfeed (Customer Requirement): Outfeed

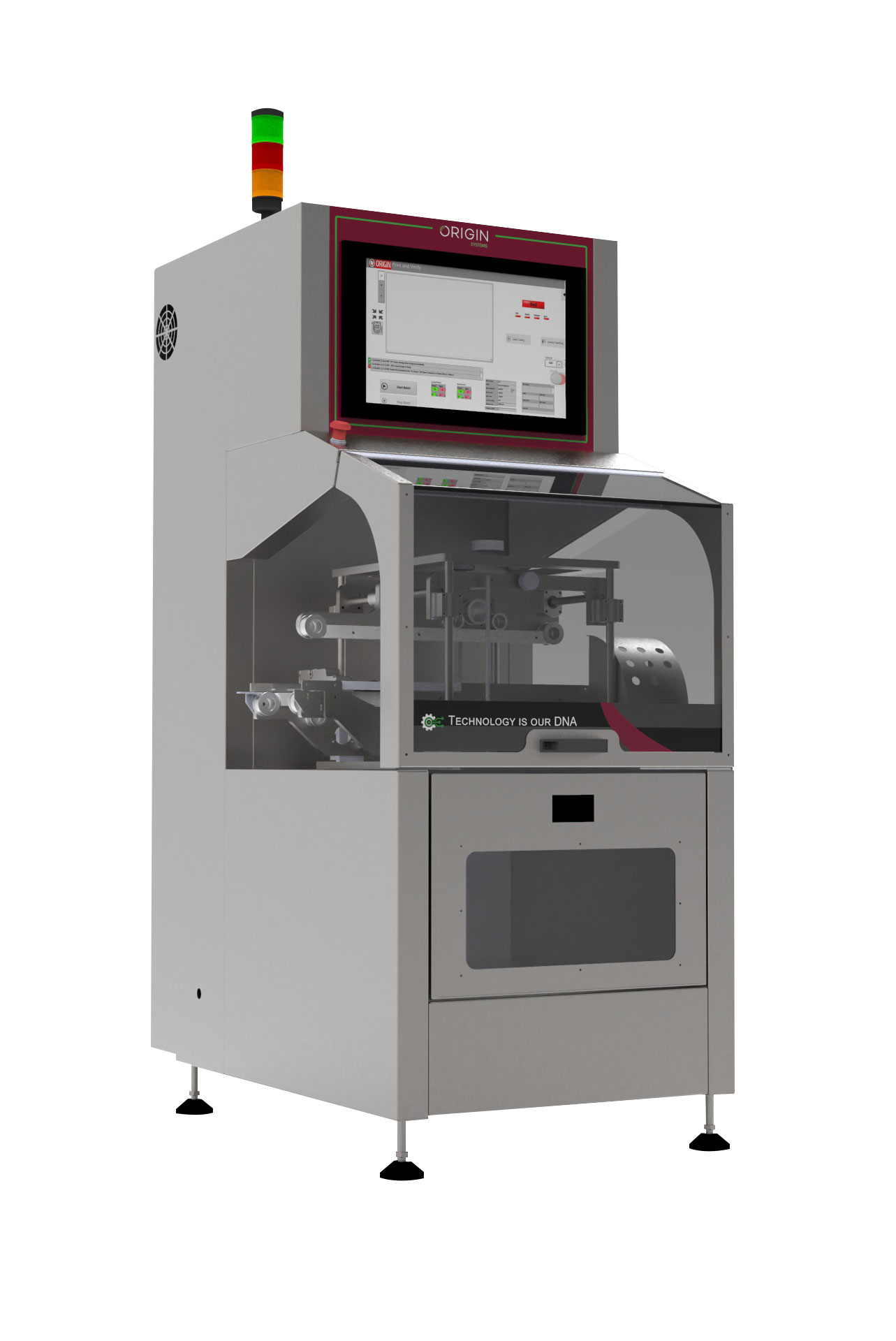

Inline Compact
Serialization

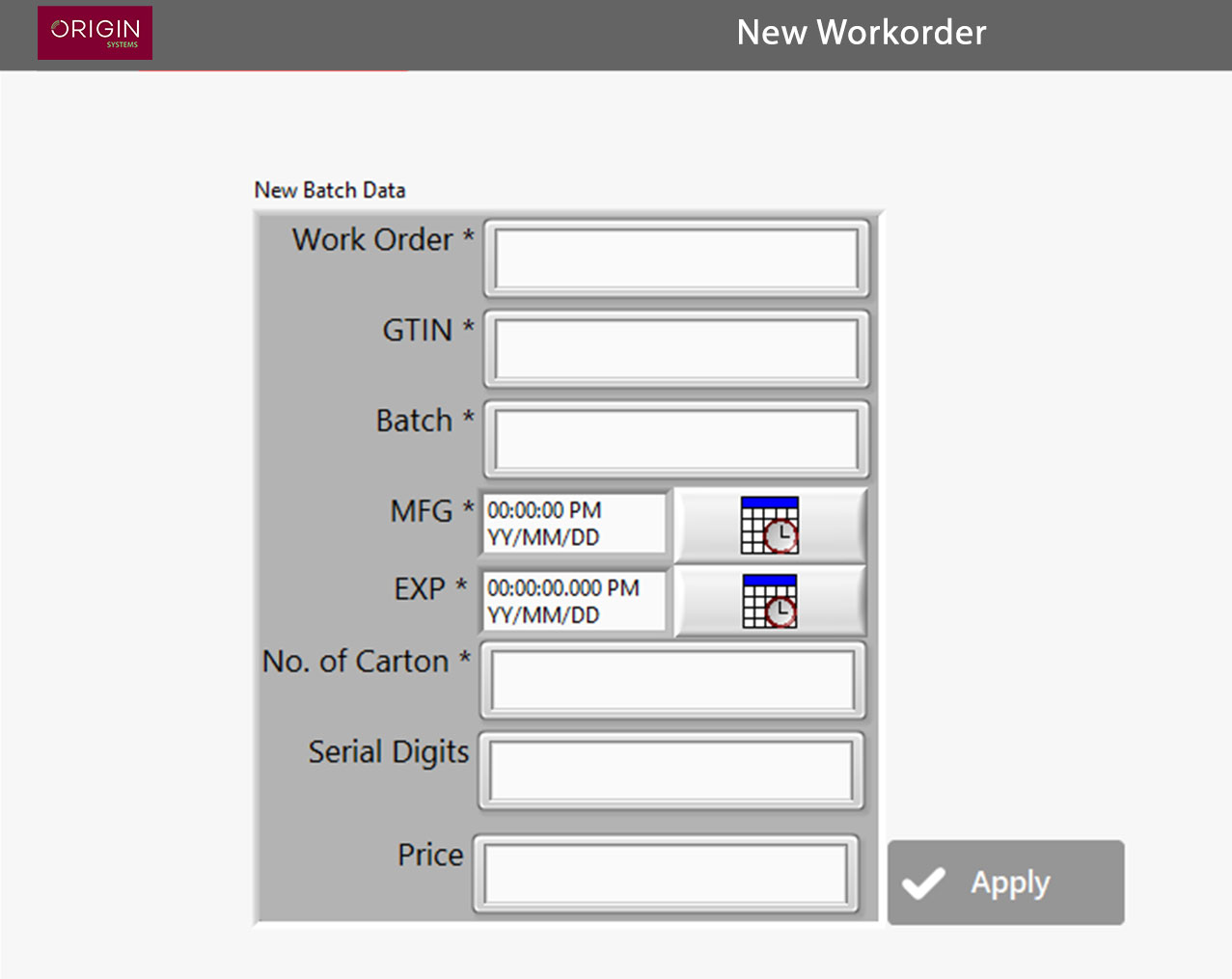

Online Serialization System

  • Features
  • Integrated on an existing machine: Available with minimum footprint
  • Visual log for bad items: Available
  • Added proccess time
  • Report: Reporting batch statistic
  • Audit trail: Keep log of user actions while system is running
  • Exception handling: Available for sample taking and destroy or check carton state
  • User Access Management: Enable creating/editing users with different levels
  • Visualization: Extra screen for visualization of multiple scanners (optional)
  • Feature: Comment

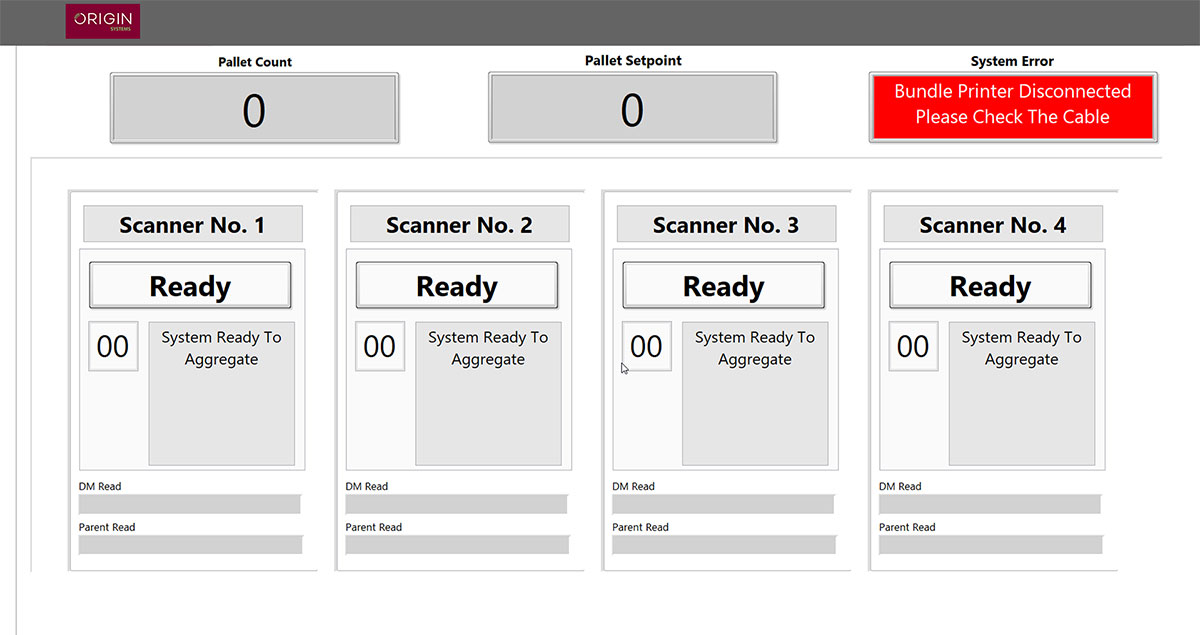

Online Aggregation System

  • Features
  • Integrated on an existing machine: Available with minimum footprint
  • Visual log for bad items: Available
  • Added process time: AVG 2 Sec / Unit considering manual scanning
  • Aggregation mode: Before serialization, after serialization, integrate to Origin serialization
  • Exception handling: Available for sample taking and destroy or check carton state
  • User Access Management: Enable creating/editing users with different levels
  • Report: Reporting batch statistic
  • Audit trail: Keep log of user actions while system is running
  • Palletization: Single / Multiple scanners (For bundling)
  • Visualization: Extra screen for visualization of multiple scanners (optional)
offline serialization

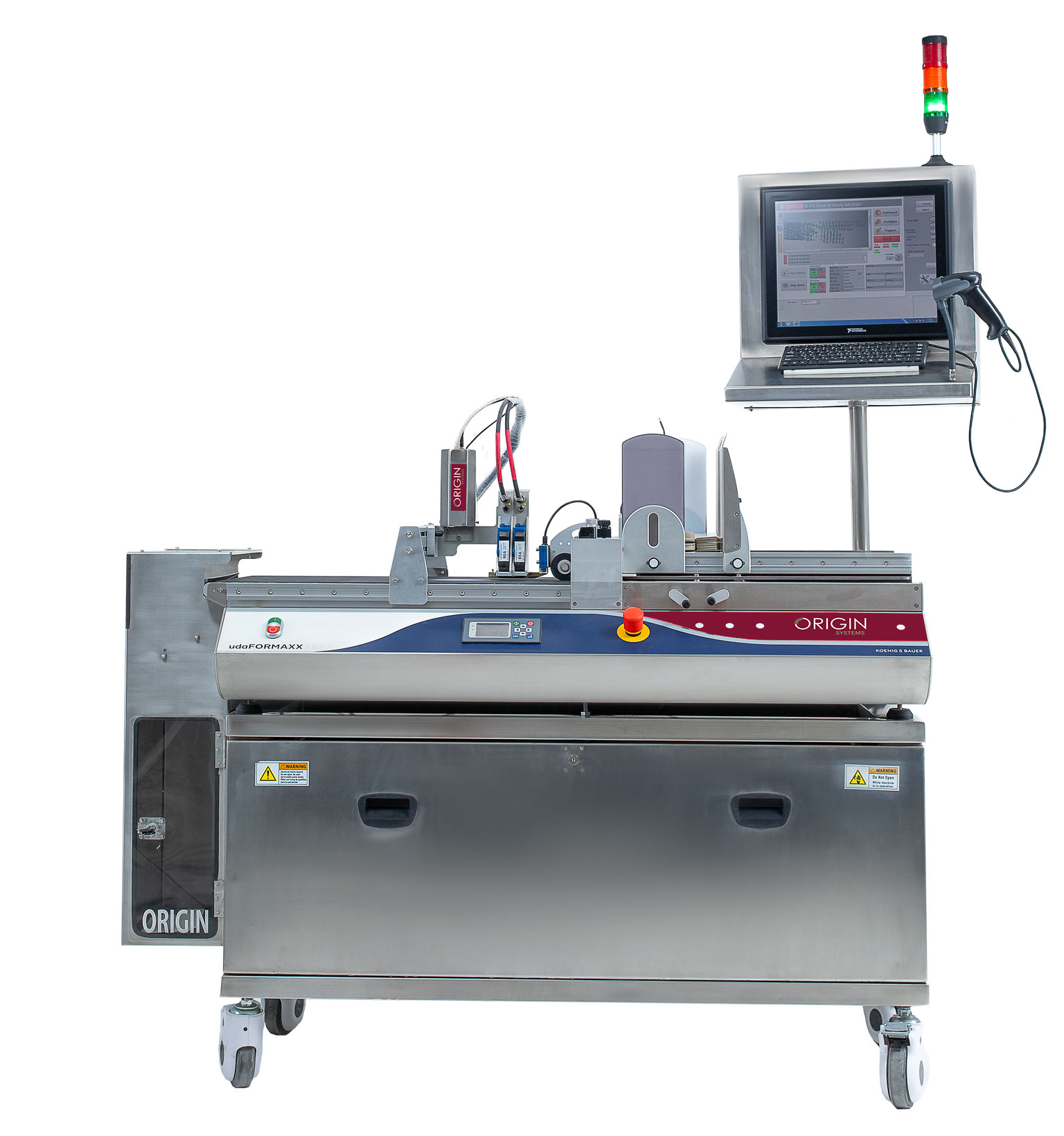

Offline Serilization (Standalone Machine)

  • Technical
  • Packing

Machine length: 1500 mm
Machine width: 850 mm
Machine height: 1700 mm
Machine frame: Aluminum - profile, stainless steel
Cladding pannels/doors: Transparent / non-transparent: Polycarbonite
Weight: Approx. 200 KG
Noise level: 66 dB
Control cabinet: Integrated in machine
Working procedure: Servo / Pneumatic
Supply voltage: 220VAC

Output: Max. 750 carton / min

  • Dimensions min. W x L : 64 x 45 mm
  • Dimensions max. W x L: 372 x 430 mm, 372 x 500 mm
  • Material thickness min.: 100 g/m²
  • Material thickness max.: 5 mm
  • Infeed (Customer Requirement): Running direction right
  • Outfeed (Customer Requirement): Outfeed

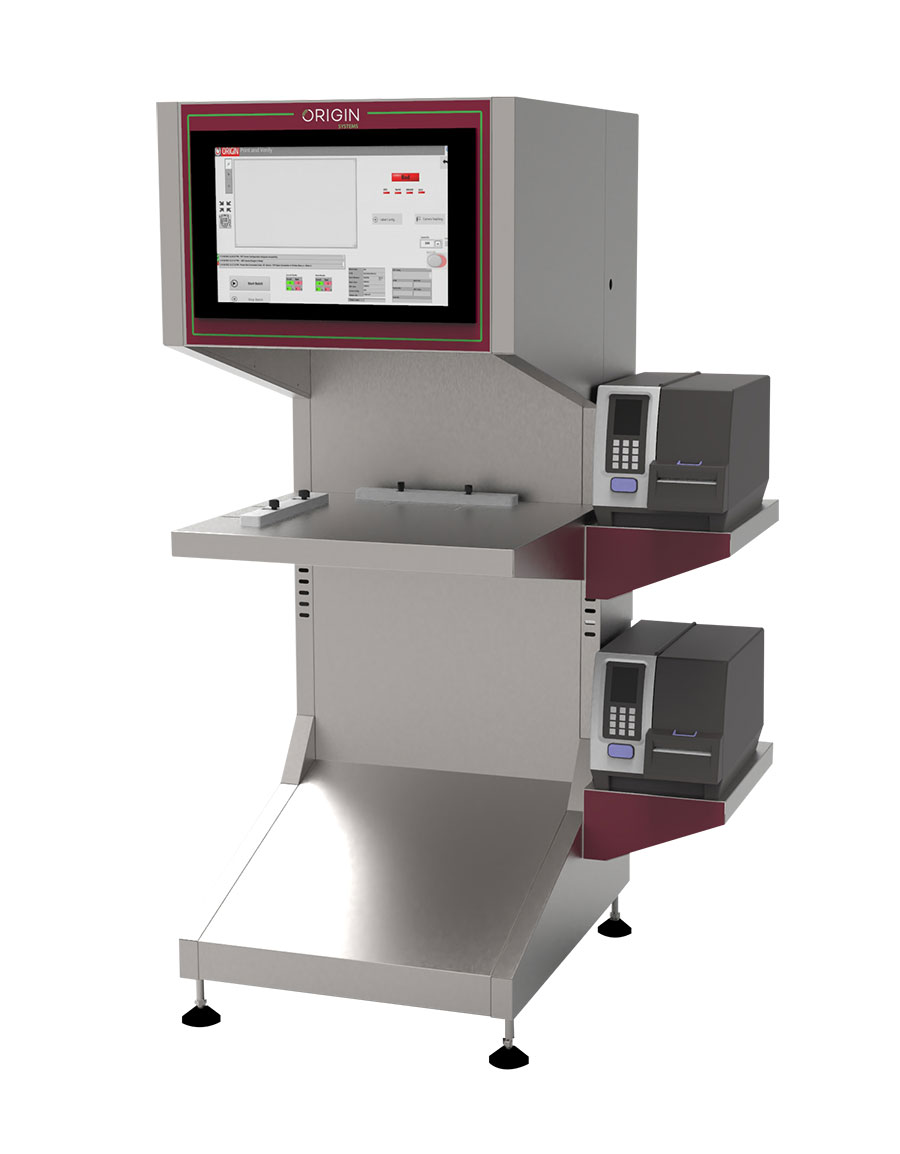

Bulk Aggregation (Semi-Automatic Standalone Machine)

  • Features
  • Technical
  • Maintenance free: The machine has no moving parts for robust operation
  • High success rate up to 99.8 %: due to its optimized vision system and software algorithms
  • Data integrity: The machine has a local Database storing all serials status and events, Following CFR 21 Part 11 regulations
  • User friendly SW: SW is designed to ease the operation, secure and simplify the process
  • Multi-level: the machine is available with several models to serve up to 3 aggregation levels simultaneously (bundle/case, Master case, and pallet)
  • Aggregate through Shrink wrapped bundles: The machine is available with models that can aggregate through shrink wrapped bundles, using special design vision system for this application

Machine length: 700 mm
Machine width: 900 mm
Machine height: 1700 mm
